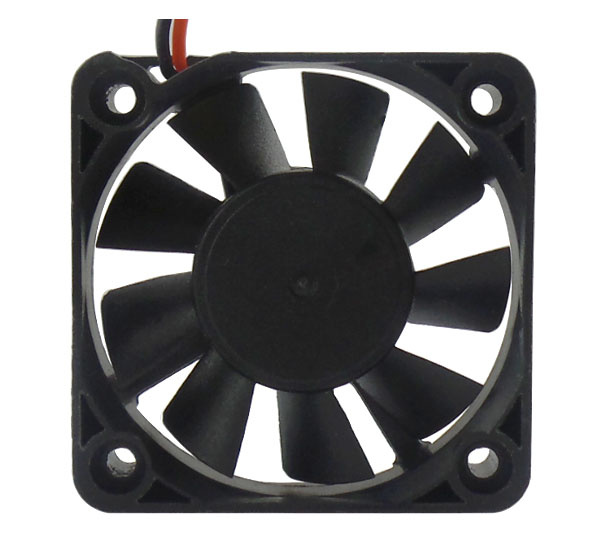

直流風扇 JHX5010
5010 尺寸/Size 50X50X10mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX5010X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.25 |
1.25 |
5000 |
10.43 |
2.52 |
28.44 |
|
JHX5010X05M |
0.20 |
1.00 |
4500 |
9.42 |
2.27 |
26.09 |
|||
|
JHX5010X05L |
0.15 |
0.75 |
3500 |
7.30 |
1.77 |
20.82 |
|||
|
JHX5010X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.16 |
1.92 |
5000 |
10.43 |
2.52 |
28.44 |
|
JHX5010X12M |
0.12 |
1.44 |
4500 |
9.42 |
2.27 |
26.09 |
|||
|
JHX5010X12L |
0.08 |
0.96 |
3500 |
7.30 |
1.77 |
20.82 |
|||
